Raya and the Last Dragon
2021
HDR10
4K / BD Pair
+27.4 Mbps video vs BD
Atmos vs 7.1
Video
CodecHEVC (H.265)
Resolution4K (3840×2160)
HDRHDR10
Transfersmpte2084
Primariesbt2020
Color spacebt2020nc
Avg bitrate51.3 Mbps
Peak bitrate88.3 Mbps
Audio
Codectruehd
ProfileTrueHD + Atmos
Channels8
Layout7.1
Avg bitrate8472 kbps
Peak bitrate12098 kbps
Standard Blu-ray Version
Video (Standard Blu-ray)
CodecH.264
Resolution1080p (1920×1080)
Avg bitrate23.9 Mbps
Peak bitrate29.7 Mbps
Audio (Standard Blu-ray)
Codecdts
ProfileDTS-HD MA
Channels8
Layout7.1
Avg bitrate5286 kbps
Peak bitrate6846 kbps
Peak Video Clip (highest 5s video bitrate)
Peak Audio Clip (highest 5s audio bitrate)
LFE Sonic Energy Band Analysis (200ms Windows)
Sub-Infrasonic (0–10 Hz) 0–10 Hz
Extreme Infrasonic / Seismic vibrations
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -23.7 dBFS | 1:19:41 |
| #2 | -30.0 dBFS | 1:09:11 |
| #3 | -30.9 dBFS | 17:44 |
| #4 | -31.4 dBFS | 1:23:02 |
| #5 | -31.9 dBFS | 1:25:59 |
Infrasonic (10–20 Hz) 10–20 Hz
Threshold of hearing / Physical chest pressure
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -11.0 dBFS | 1:09:11 |
| #2 | -18.0 dBFS | 1:27:11 |
| #3 | -18.4 dBFS | 1:23:02 |
| #4 | -19.7 dBFS | 1:18:47 |
| #5 | -23.1 dBFS | 1:20:39 |
Deep Bass (20–40 Hz) 20–40 Hz
Deep subwoofer bass / Tactile rumble
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -8.4 dBFS | 1:09:11 |
| #2 | -9.7 dBFS | 1:23:02 |
| #3 | -10.1 dBFS | 1:20:39 |
| #4 | -11.4 dBFS | 1:27:11 |
| #5 | -12.4 dBFS | 18:00 |
Full LFE (0–80 Hz) 0–80 Hz
Total LFE channel energy
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -7.0 dBFS | 1:09:11 |
| #2 | -9.1 dBFS | 1:23:02 |
| #3 | -9.3 dBFS | 1:20:39 |
| #4 | -11.0 dBFS | 1:27:11 |
| #5 | -11.6 dBFS | 18:00 |
Sub-Infrasonic (0–10 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Infrasonic (10–20 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Deep Bass (20–40 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Full LFE (0–80 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Video Brightness Analysis

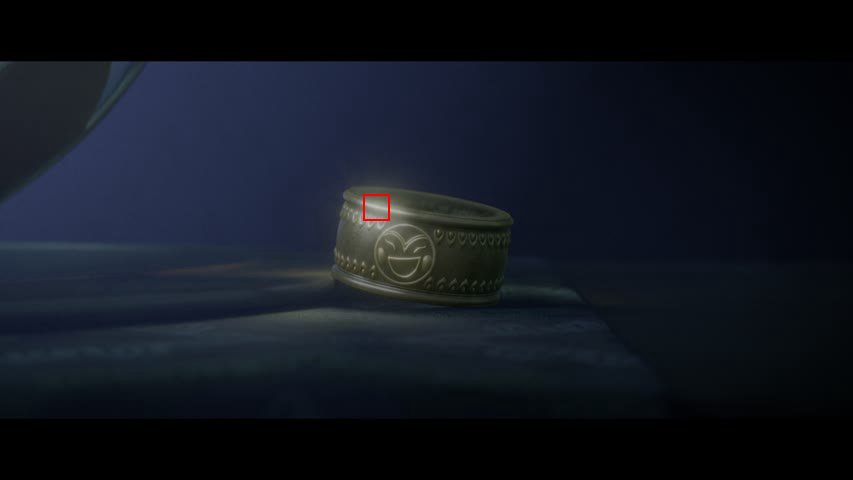

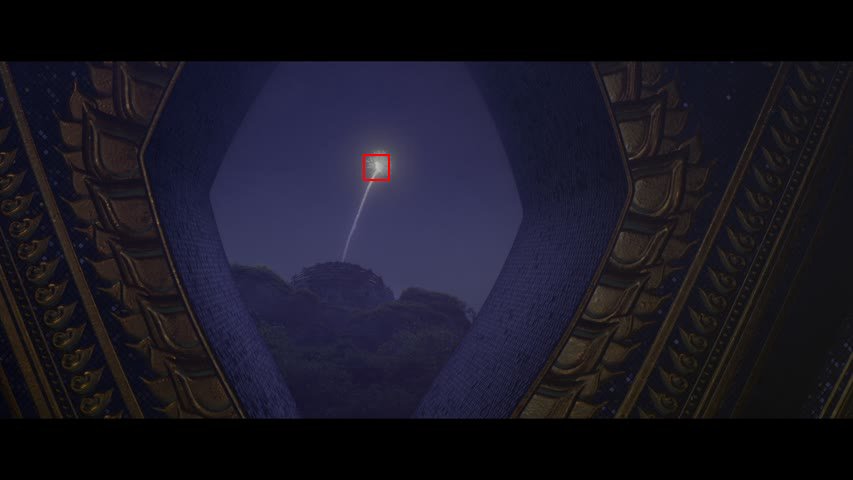

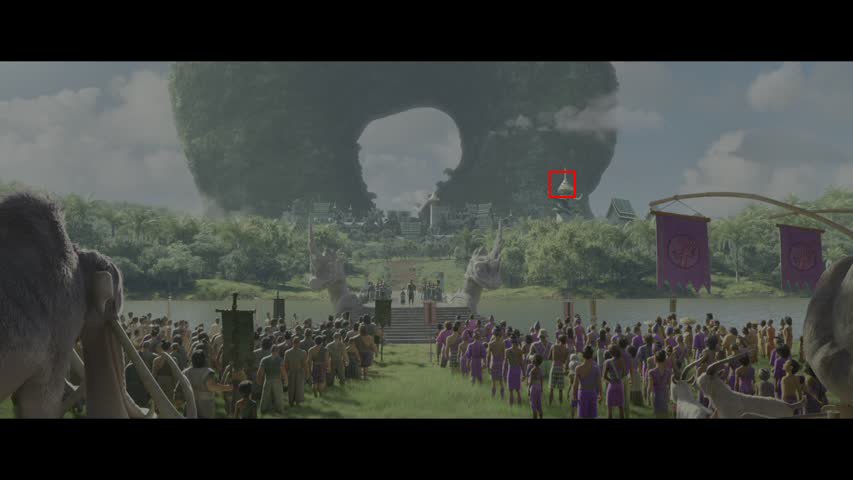

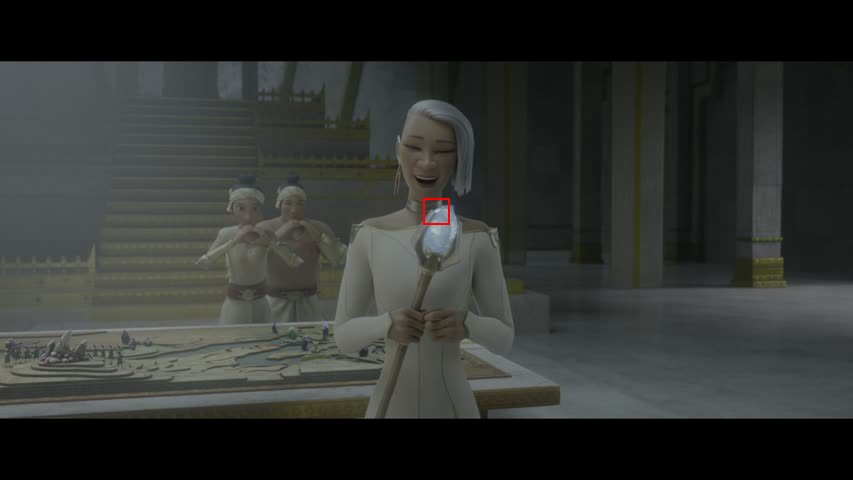

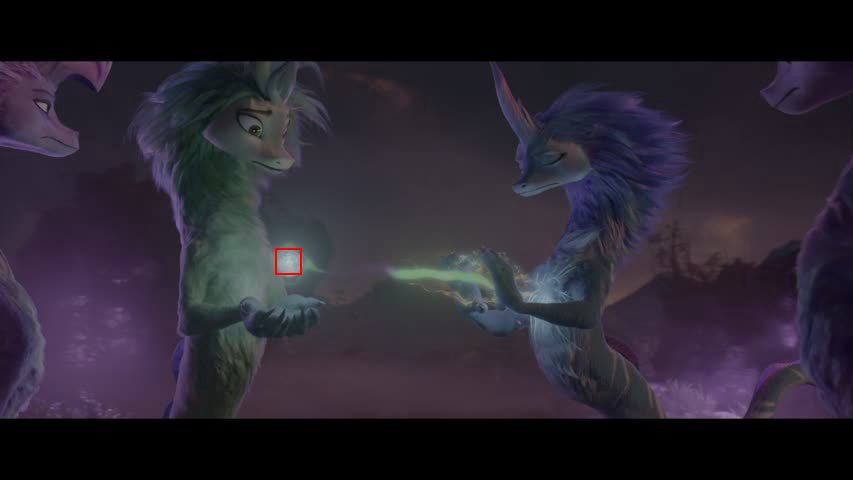

Top 5 Brightest Frames (Peak Single Pixel)
| Rank | Timestamp | Peak Nits | 480p Preview (Red Box) |
|---|---|---|---|
| #1 | 11:10 | 1000 nits |
|
| #2 | 16:21 | 1000 nits |
|
| #3 | 1:08:44 | 1000 nits |
|
| #4 | 51:59 | 1000 nits |
|
| #5 | 3:16 | 1000 nits |
|

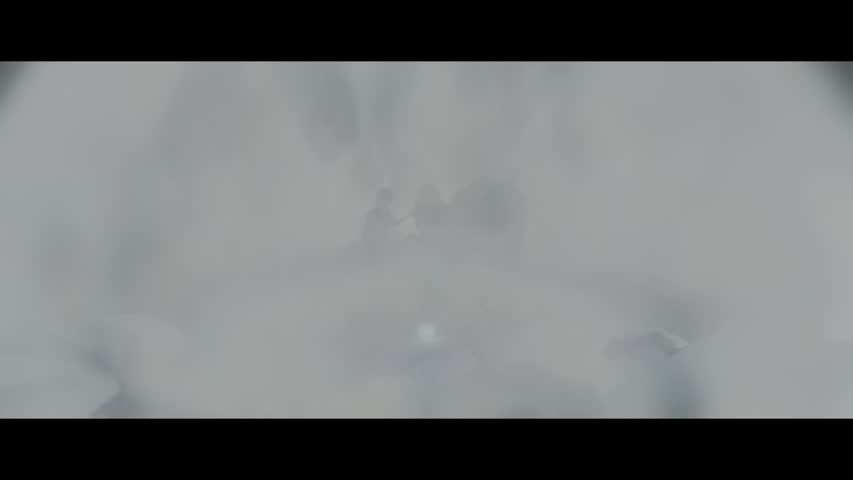

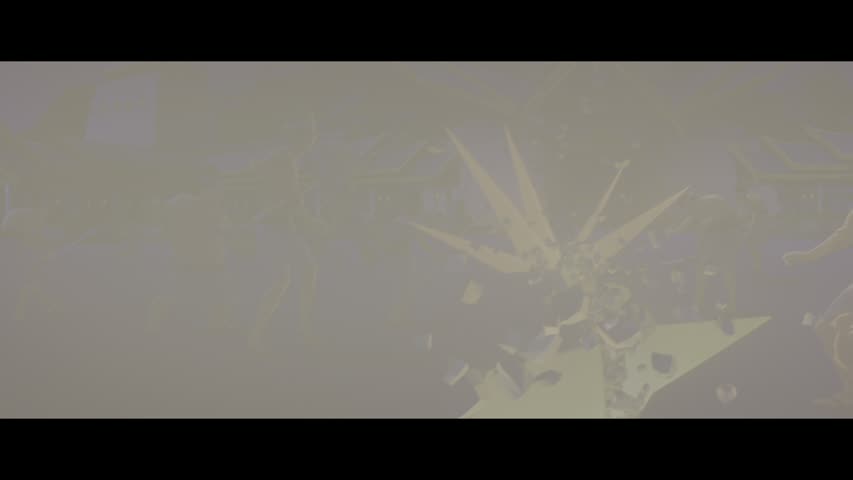

Top 5 Brightest Frames (Average Brightness)
| Rank | Timestamp | Avg Nits | 480p Preview |
|---|---|---|---|
| #1 | 1:27:08 | 276.7 nits |
|
| #2 | 1:09:12 | 218.2 nits |
|
| #3 | 1:05:31 | 176.8 nits |
|
| #4 | 1:23:59 | 157.9 nits |
|
| #5 | 1:05:17 | 141.6 nits |
|
