Mission - Impossible - Fallout
2018
DV FEL
4K / BD Pair
+42.3 Mbps video vs BD
Video
CodecHEVC (H.265)
Resolution4K (3840×2160)
HDRDolby Vision
Dolby VisionProfile 7 FEL
Transfersmpte2084
Primariesbt2020
Color spacebt2020nc
Avg bitrate68.5 Mbps
Peak bitrate97.8 Mbps
Audio
Codectruehd
ProfileTrueHD + Atmos
Channels8
Layout7.1
Avg bitrate5027 kbps
Peak bitrate8232 kbps
Standard Blu-ray Version
Video (Standard Blu-ray)
CodecH.264
Resolution1080p (1920×1080)
Avg bitrate26.2 Mbps
Peak bitrate29.0 Mbps
Audio (Standard Blu-ray)
Codectruehd
ProfileTrueHD + Atmos
Channels8
Layout7.1
Avg bitrate5027 kbps
Peak bitrate8205 kbps
Peak Video Clip (highest 5s video bitrate)
Peak Audio Clip (highest 5s audio bitrate)
LFE Sonic Energy Band Analysis (200ms Windows)
Sub-Infrasonic (0–10 Hz) 0–10 Hz
Extreme Infrasonic / Seismic vibrations
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -16.4 dBFS | 16:33 |
| #2 | -17.2 dBFS | 24:33 |
| #3 | -19.7 dBFS | 2:05:57 |
| #4 | -22.1 dBFS | 49:46 |
| #5 | -22.3 dBFS | 1:03:38 |
Infrasonic (10–20 Hz) 10–20 Hz
Threshold of hearing / Physical chest pressure
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -13.6 dBFS | 24:33 |
| #2 | -16.1 dBFS | 1:58:18 |
| #3 | -16.6 dBFS | 26:12 |
| #4 | -16.6 dBFS | 27:38 |
| #5 | -17.0 dBFS | 1:09:18 |
Deep Bass (20–40 Hz) 20–40 Hz
Deep subwoofer bass / Tactile rumble
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -7.9 dBFS | 1:57:48 |
| #2 | -8.4 dBFS | 26:12 |
| #3 | -8.5 dBFS | 2:06:00 |
| #4 | -8.5 dBFS | 24:33 |
| #5 | -8.8 dBFS | 2:08:00 |
Full LFE (0–80 Hz) 0–80 Hz
Total LFE channel energy
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -4.3 dBFS | 24:33 |
| #2 | -6.8 dBFS | 1:57:48 |
| #3 | -7.7 dBFS | 26:12 |
| #4 | -7.7 dBFS | 2:08:00 |
| #5 | -8.3 dBFS | 2:06:00 |
Sub-Infrasonic (0–10 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Infrasonic (10–20 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Deep Bass (20–40 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Full LFE (0–80 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Video Brightness Analysis

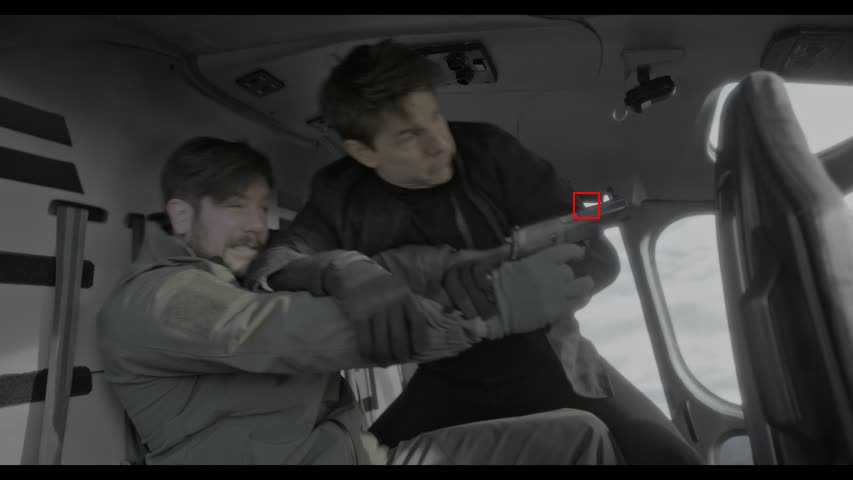

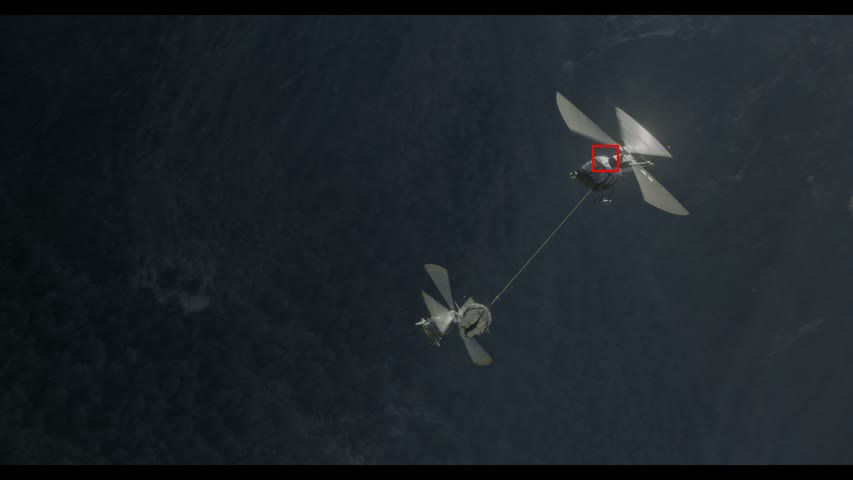

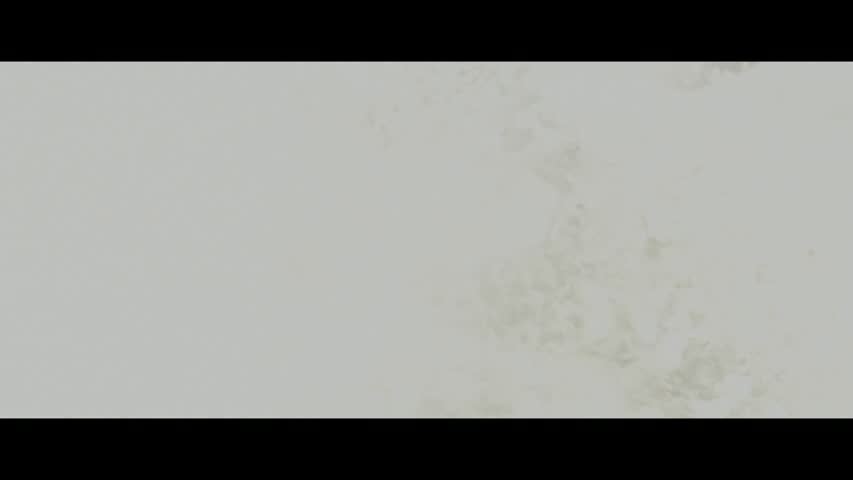

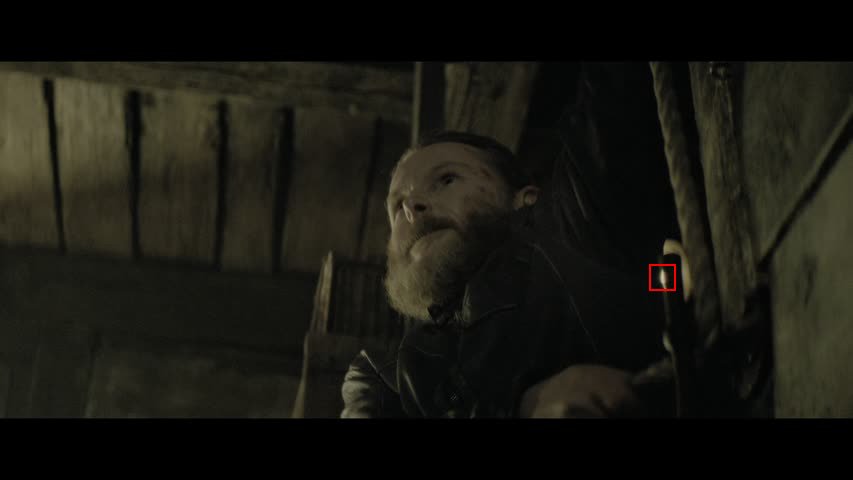

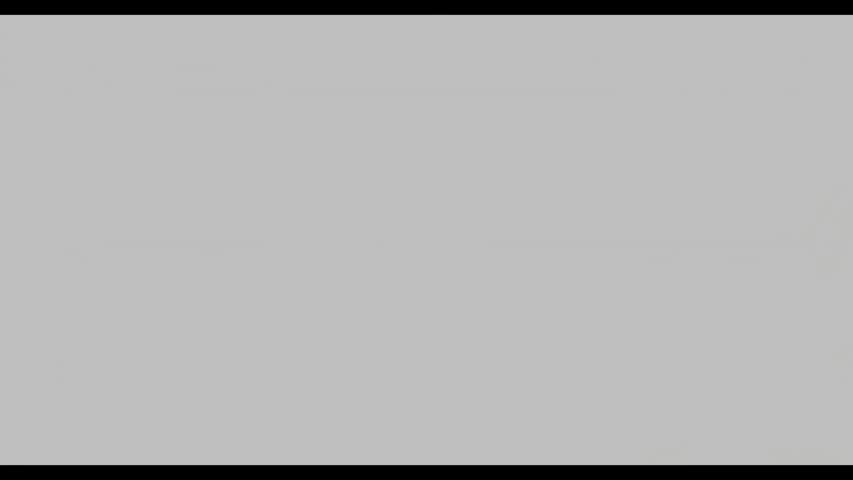

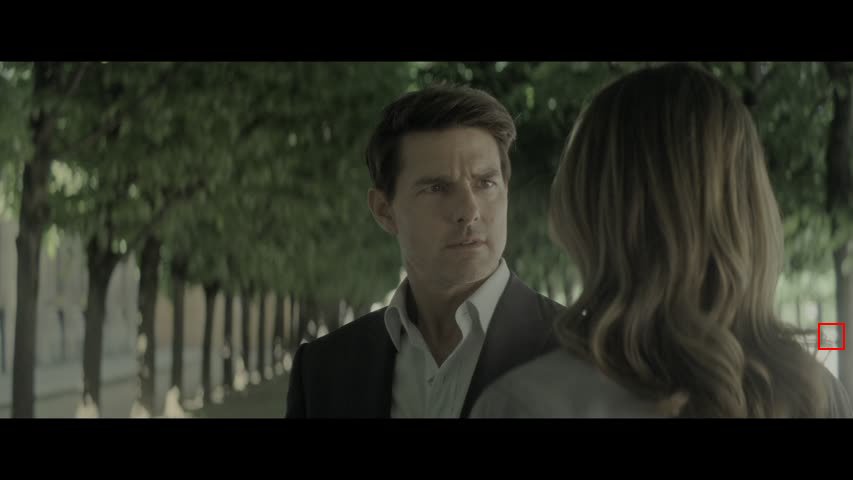

Top 5 Brightest Frames (Peak Single Pixel)
| Rank | Timestamp | Peak Nits | 480p Preview (Red Box) |
|---|---|---|---|
| #1 | 1:57:33 | 1000 nits |
|
| #2 | 2:05:02 | 1000 nits |
|
| #3 | 2:19:43 | 1000 nits |
|
| #4 | 1:55:19 | 1000 nits |
|
| #5 | 1:15:32 | 1000 nits |
|

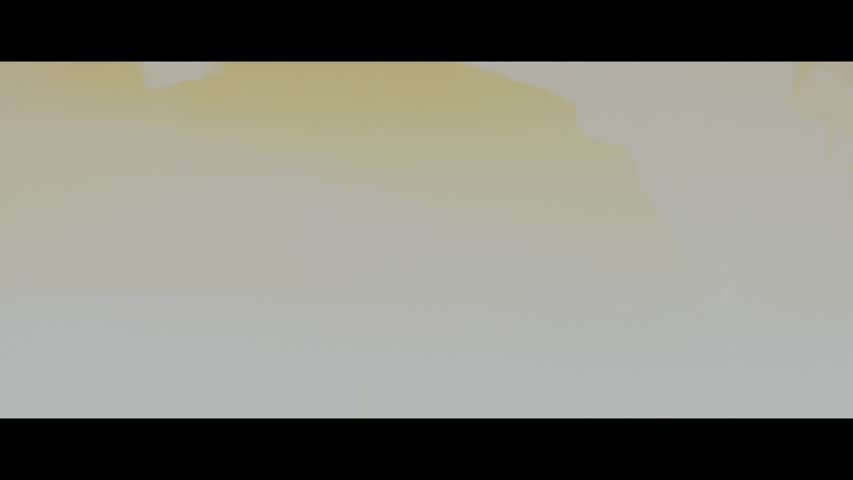

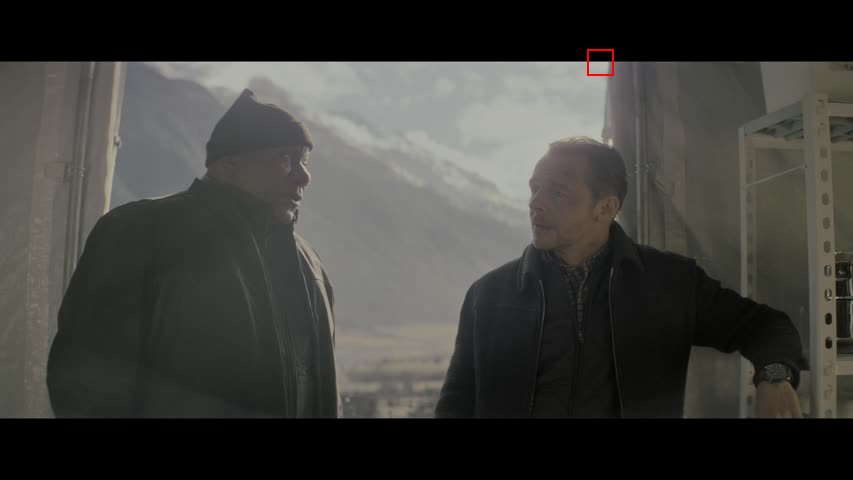

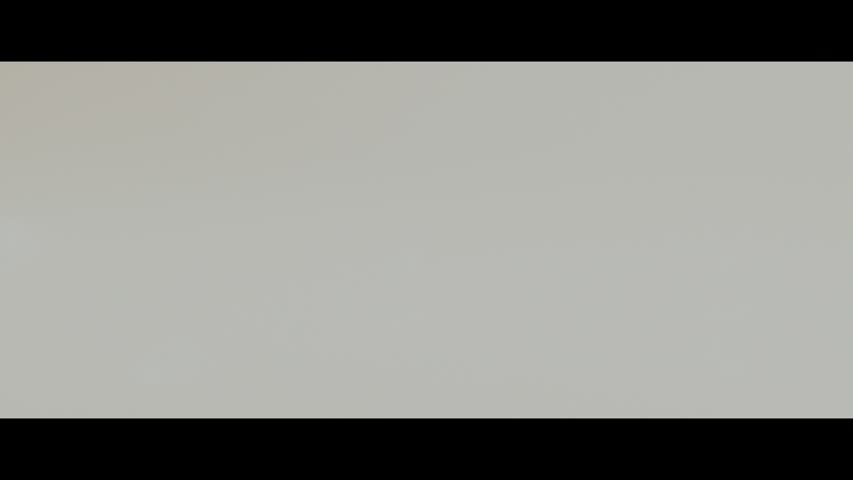

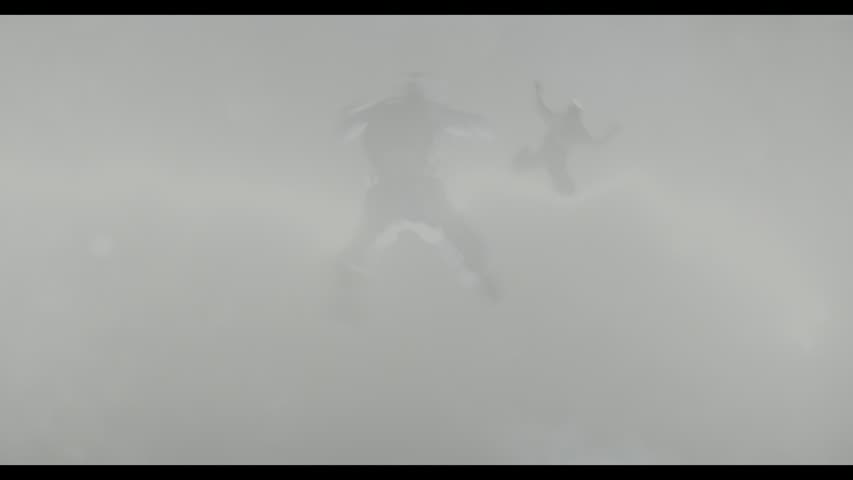

Top 5 Brightest Frames (Average Brightness)
| Rank | Timestamp | Avg Nits | 480p Preview |
|---|---|---|---|
| #1 | 2:13:59 | 961.4 nits |
|
| #2 | 1:30 | 928.4 nits |
|
| #3 | 16:54 | 738.7 nits |
|
| #4 | 2:19:51 | 588.5 nits |
|
| #5 | 24:33 | 540.8 nits |
|
