Big Hero 6
2014
HDR10
4K / BD Pair
+31.9 Mbps video vs BD
Atmos vs 7.1
Video
CodecHEVC (H.265)
Resolution4K (3840×2160)
HDRHDR10
Transfersmpte2084
Primariesbt2020
Color spacebt2020nc
Avg bitrate58.8 Mbps
Peak bitrate97.3 Mbps
Audio
Codectruehd
ProfileTrueHD + Atmos
Channels8
Layout7.1
Avg bitrate7472 kbps
Peak bitrate11302 kbps
Standard Blu-ray Version
Video (Standard Blu-ray)
CodecH.264
Resolution1080p (1920×1080)
Avg bitrate26.9 Mbps
Peak bitrate31.8 Mbps
Audio (Standard Blu-ray)
Codecdts
ProfileDTS-HD MA
Channels8
Layout7.1
Avg bitrate4554 kbps
Peak bitrate6090 kbps
Peak Video Clip (highest 5s video bitrate)
Peak Audio Clip (highest 5s audio bitrate)
LFE Sonic Energy Band Analysis (200ms Windows)
Sub-Infrasonic (0–10 Hz) 0–10 Hz
Extreme Infrasonic / Seismic vibrations
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -18.6 dBFS | 47:31 |
| #2 | -19.1 dBFS | 1:31 |
| #3 | -19.3 dBFS | 1:21:57 |
| #4 | -19.8 dBFS | 59:03 |
| #5 | -20.4 dBFS | 45:49 |
Infrasonic (10–20 Hz) 10–20 Hz
Threshold of hearing / Physical chest pressure
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -8.7 dBFS | 57:56 |
| #2 | -8.8 dBFS | 59:03 |
| #3 | -10.0 dBFS | 1:21:57 |
| #4 | -10.6 dBFS | 48:37 |
| #5 | -11.0 dBFS | 47:31 |
Deep Bass (20–40 Hz) 20–40 Hz
Deep subwoofer bass / Tactile rumble
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -4.5 dBFS | 47:31 |
| #2 | -5.4 dBFS | 1:31 |
| #3 | -6.0 dBFS | 48:37 |
| #4 | -6.6 dBFS | 59:58 |
| #5 | -7.4 dBFS | 57:56 |
Full LFE (0–80 Hz) 0–80 Hz
Total LFE channel energy
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -3.7 dBFS | 47:31 |
| #2 | -4.3 dBFS | 1:31 |
| #3 | -5.2 dBFS | 57:56 |
| #4 | -5.8 dBFS | 59:58 |
| #5 | -5.8 dBFS | 48:37 |
Sub-Infrasonic (0–10 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Infrasonic (10–20 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Deep Bass (20–40 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Full LFE (0–80 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Video Brightness Analysis

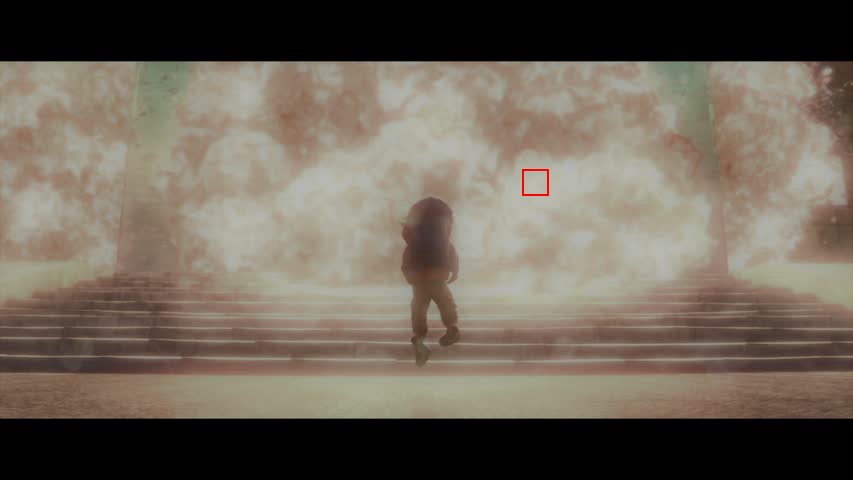

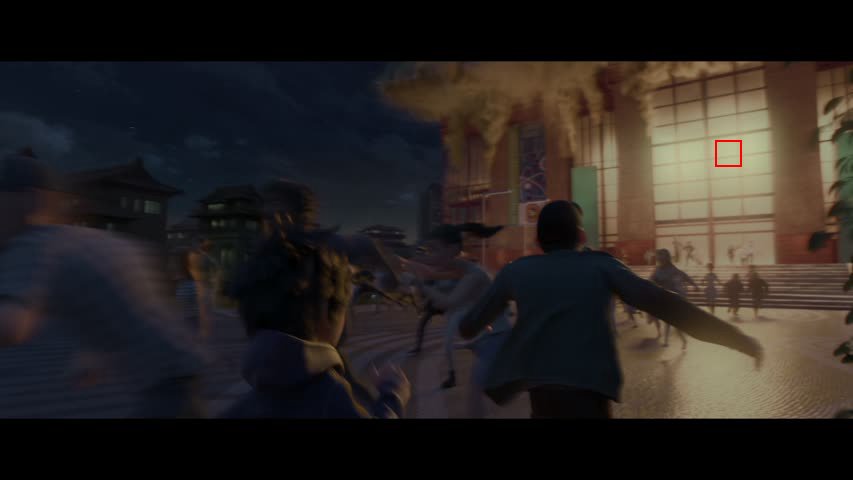

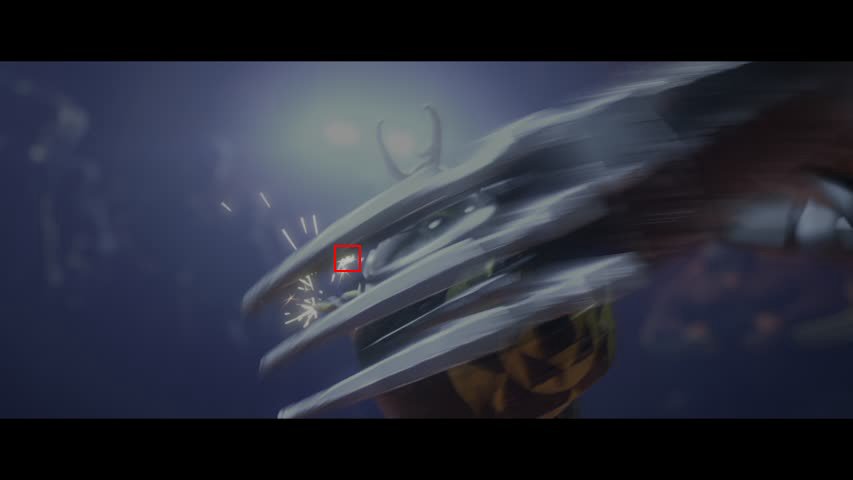

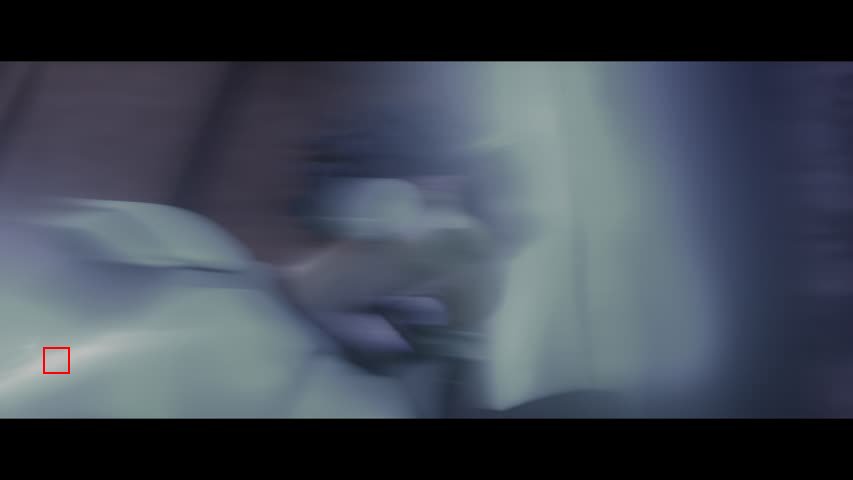

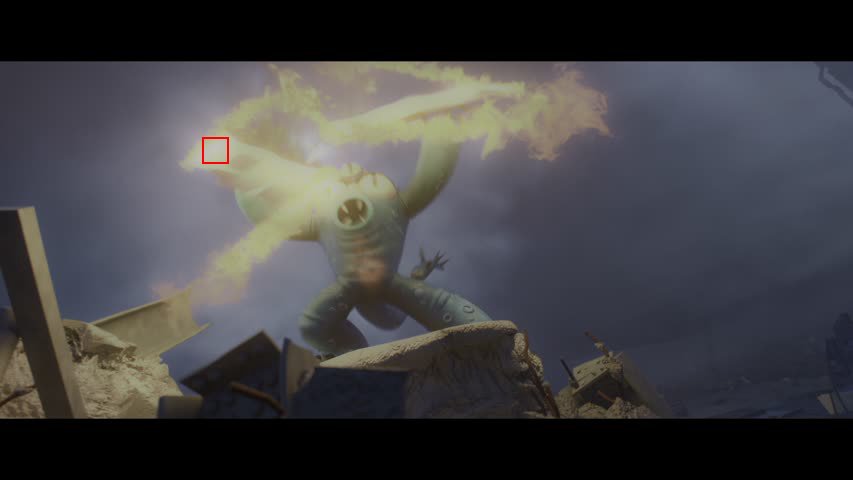

Top 5 Brightest Frames (Peak Single Pixel)
| Rank | Timestamp | Peak Nits | 480p Preview (Red Box) |
|---|---|---|---|
| #1 | 1:22:25 | 1000 nits |
|
| #2 | 4:07 | 1000 nits |
|
| #3 | 22:35 | 994 nits |
|
| #4 | 1:02:52 | 953 nits |
|
| #5 | 23:07 | 904 nits |
|

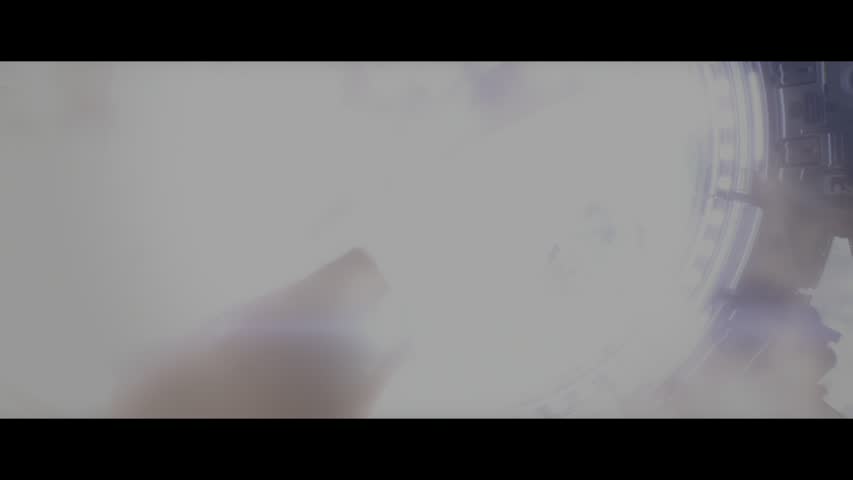

Top 5 Brightest Frames (Average Brightness)
| Rank | Timestamp | Avg Nits | 480p Preview |
|---|---|---|---|
| #1 | 1:25:22 | 267.5 nits |
|
| #2 | 1:09:44 | 266.8 nits |
|
| #3 | 1:21:57 | 239.3 nits |
|
| #4 | 1:02:53 | 233.1 nits |
|
| #5 | 1:21:38 | 225.3 nits |
|
