Toy Story 3
2010
HDR10
4K / BD Pair
+16.4 Mbps video vs BD
Atmos vs 7.1
Video
CodecHEVC (H.265)
Resolution4K (3840×2160)
HDRHDR10
Transfersmpte2084
Primariesbt2020
Color spacebt2020nc
Avg bitrate40.9 Mbps
Peak bitrate94.4 Mbps
Audio
Codectruehd
ProfileTrueHD + Atmos
Channels8
Layout7.1
Avg bitrate7404 kbps
Peak bitrate10669 kbps
Standard Blu-ray Version
Video (Standard Blu-ray)
CodecH.264
Resolution1080p (1920×1080)
Avg bitrate24.5 Mbps
Peak bitrate32.0 Mbps
Audio (Standard Blu-ray)
Codecdts
ProfileDTS-HD MA
Channels8
Layout7.1
Avg bitrate3247 kbps
Peak bitrate4409 kbps
Peak Video Clip (highest 5s video bitrate)
Peak Audio Clip (highest 5s audio bitrate)
LFE Sonic Energy Band Analysis (200ms Windows)
Sub-Infrasonic (0–10 Hz) 0–10 Hz
Extreme Infrasonic / Seismic vibrations
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -19.9 dBFS | 3:50 |
| #2 | -20.6 dBFS | 1:18:15 |
| #3 | -21.9 dBFS | 18:19 |
| #4 | -22.1 dBFS | 1:19:43 |
| #5 | -22.3 dBFS | 1:02:06 |
Infrasonic (10–20 Hz) 10–20 Hz
Threshold of hearing / Physical chest pressure
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -11.5 dBFS | 3:50 |
| #2 | -15.1 dBFS | 1:18:15 |
| #3 | -15.9 dBFS | 1:19:43 |
| #4 | -17.3 dBFS | 1:12:05 |
| #5 | -17.5 dBFS | 1:02:06 |
Deep Bass (20–40 Hz) 20–40 Hz
Deep subwoofer bass / Tactile rumble
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -3.3 dBFS | 1:19:43 |
| #2 | -6.4 dBFS | 3:50 |
| #3 | -7.3 dBFS | 1:18:15 |
| #4 | -9.6 dBFS | 1:22:37 |
| #5 | -9.6 dBFS | 1:02:06 |
Full LFE (0–80 Hz) 0–80 Hz
Total LFE channel energy
| Rank | Peak Energy (dBFS) | Timestamp |
|---|---|---|
| #1 | -3.0 dBFS | 1:19:43 |
| #2 | -4.9 dBFS | 3:50 |
| #3 | -4.9 dBFS | 1:18:15 |
| #4 | -7.7 dBFS | 18:19 |
| #5 | -8.4 dBFS | 1:02:06 |
Sub-Infrasonic (0–10 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Infrasonic (10–20 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Deep Bass (20–40 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Full LFE (0–80 Hz) — Frequency Spectrum (10s Window Around Top Moments)
Video Brightness Analysis

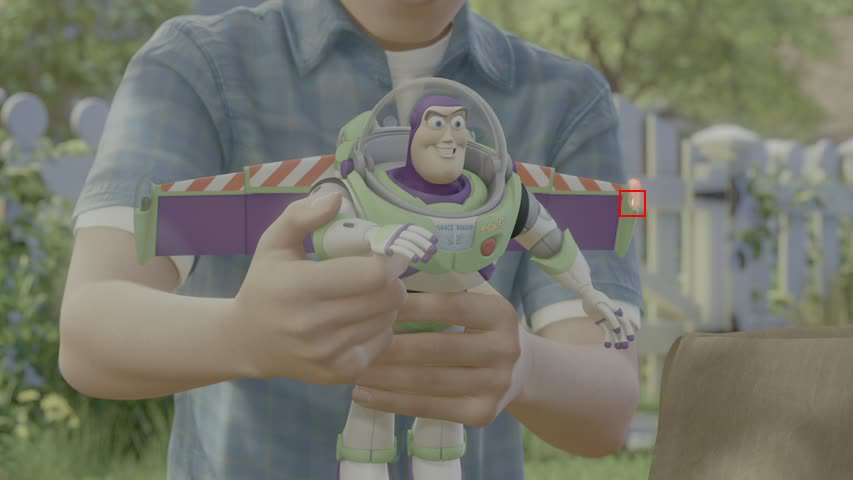

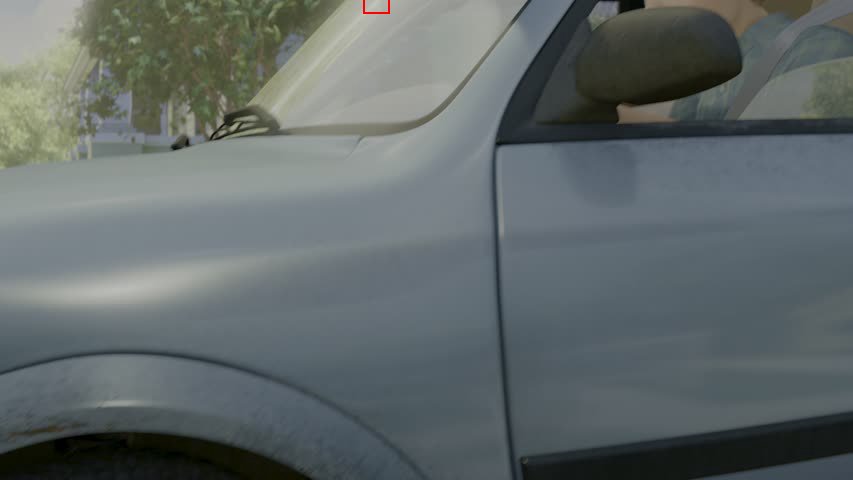

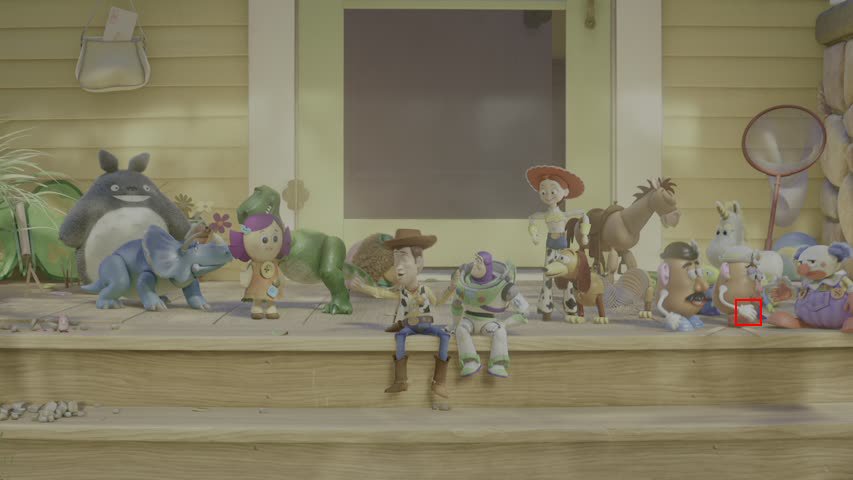

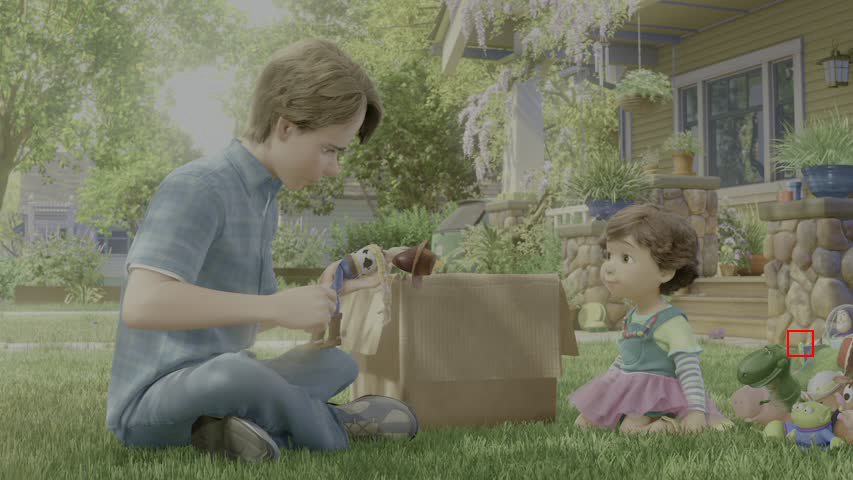

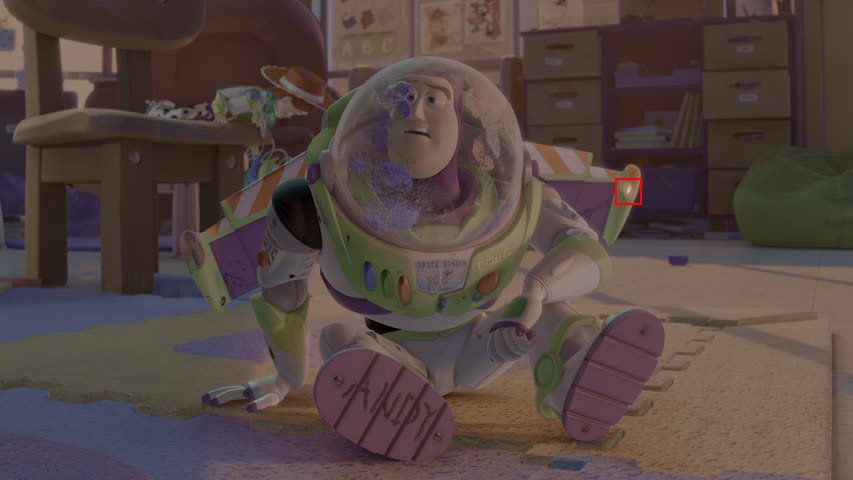

Top 5 Brightest Frames (Peak Single Pixel)
| Rank | Timestamp | Peak Nits | 480p Preview (Red Box) |
|---|---|---|---|
| #1 | 1:30:46 | 1000 nits |
|
| #2 | 1:31:24 | 1000 nits |
|
| #3 | 36:05 | 1000 nits |
|
| #4 | 1:28:26 | 1000 nits |
|
| #5 | 1:33:58 | 1000 nits |
|

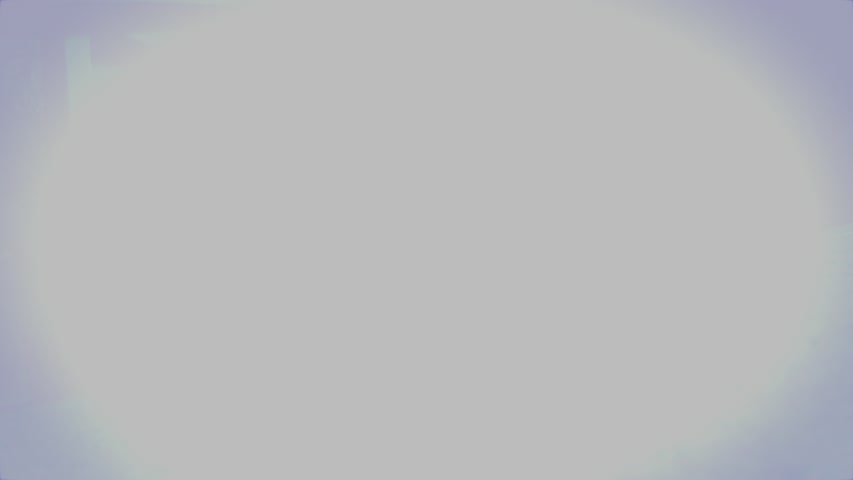

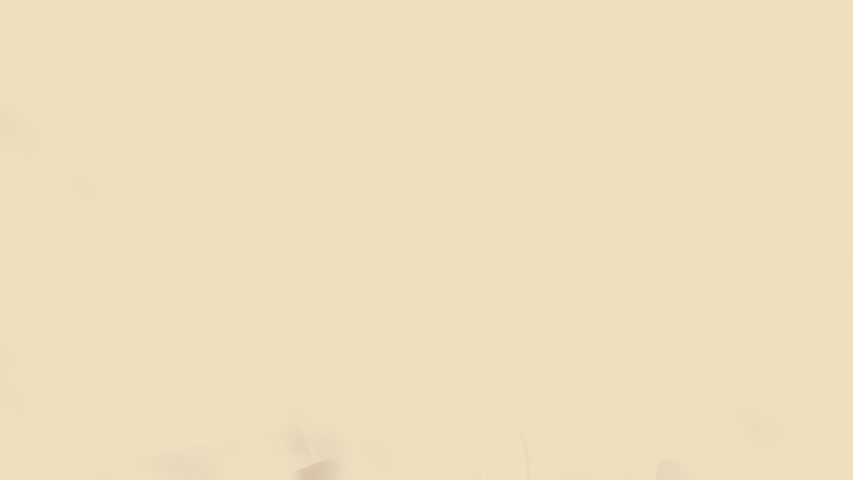

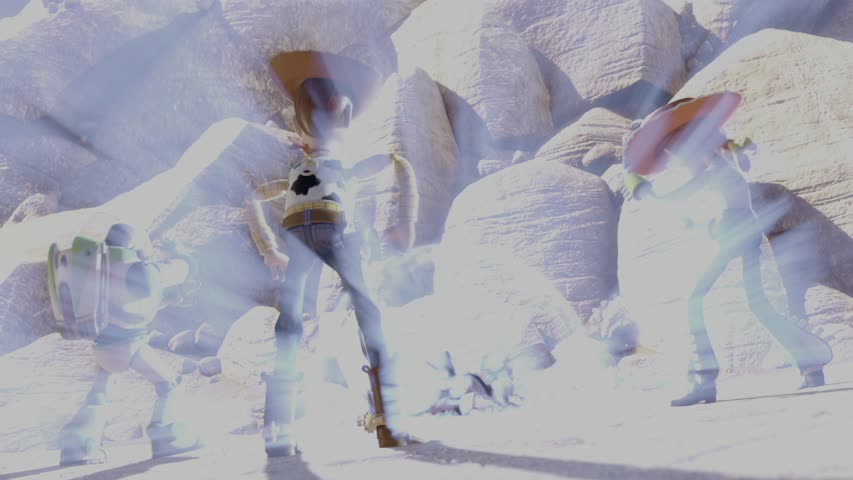

Top 5 Brightest Frames (Average Brightness)
| Rank | Timestamp | Avg Nits | 480p Preview |
|---|---|---|---|
| #1 | 1:57 | 3186.8 nits |
|
| #2 | 4:25 | 930.0 nits |
|
| #3 | 51:38 | 787.0 nits |
|
| #4 | 49:43 | 435.4 nits |
|
| #5 | 3:42 | 405.8 nits |
|
